HIGH SPEED PERMANENT MOTORS
HIGH SPEED PERMANENT MOTORS

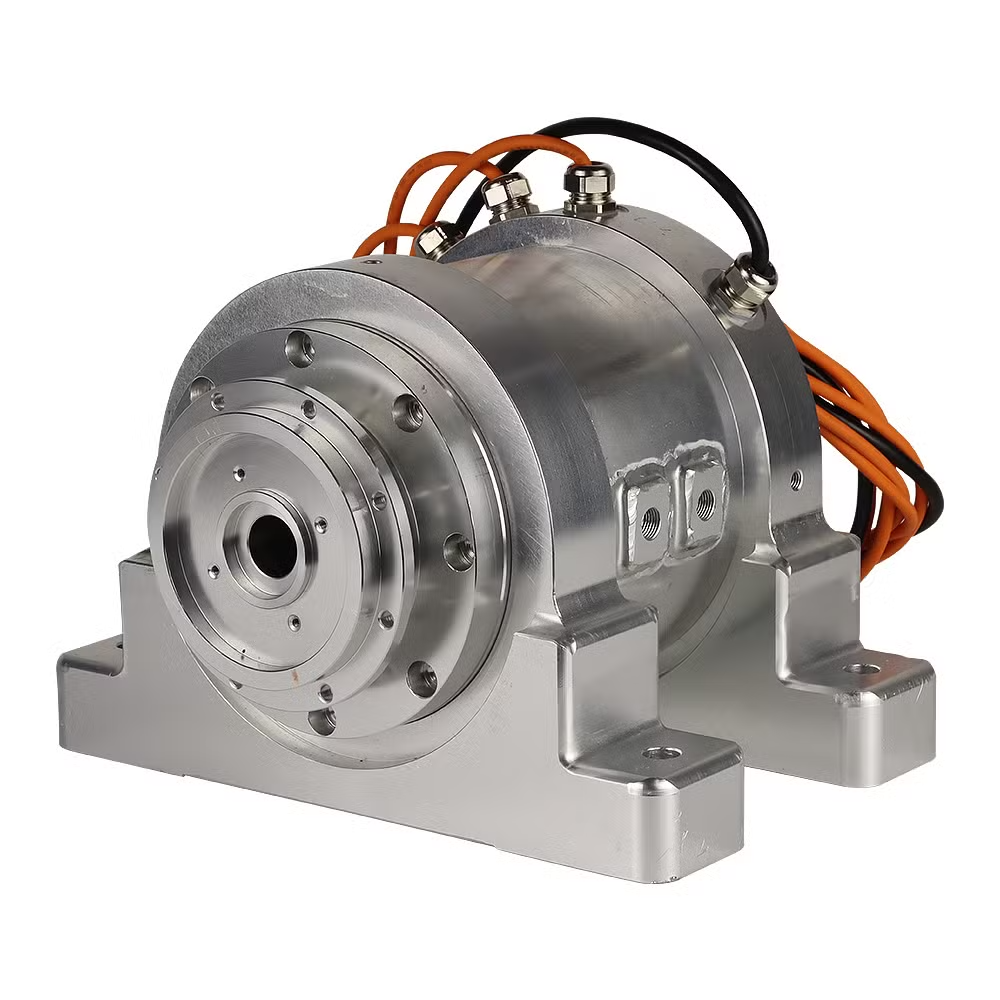

- The motor is designed for high speed fan and equipped with a ceramic bearing, the motor can be installed with a scroll
- Max speed can reach 20000rpm
- Aluminium housing with rigid feet
- IP degree:IP54, IP55
- Insulation class: F
- Cooling method: IC411
Product Range
Efficiency
IE4 / IE5
Insulation Class
F
Frame Size
130,150,180
Material of Frame
Aluminum
IP Degree
IP54, IP55
Power Range
0.75kw - 30kw
Standard Features
Energy Saving, Easy to Maintain
Comparing with the standard AC motors, the permanent magnet motor can achieve IE4 / IE5 Super Premium Efficiency level, the max efficiency can be 97%.
Instead of combination of traditional AC motor and speed reduce device, it can avoid the maintain of the speed reduce device, and also avoid mechanical power transmission losses caused by it.
Compact Structure
The motors can achieve IE4 / IE5 Super Premium Efficiency level with a more compact motor structure comparing with standard AC motors.
Suitable for Viriable Speed at Low Frequency with Quick Action
Designed for operation with variable speed drives, comparing with traditional AC motor, the speed is higher at low frequency. The motor can quickly change it’s speed and greatly improve your production efficiency and save your operation cost.
