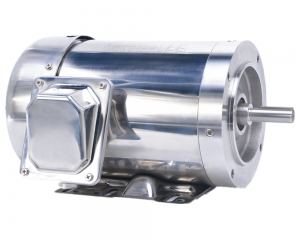

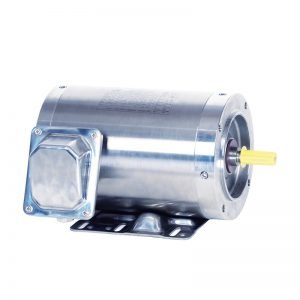

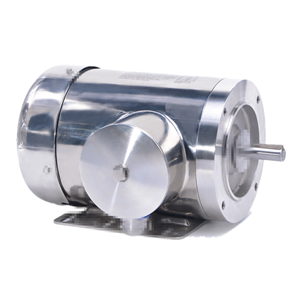

IP56 MOTORS - STAINLESS STEEL- TEFC
IP56 MOTORS - STAINLESS STEEL- TEFC
Stainless steel Motors for conveyors, pumps, and material handling applications in the food and beverage, marine, pharmaceutical, chemical, poultry industries and other applications where corrosion-resistant, watertight motors are required.
The motor is TEFC(totally enclosed fan cooled).
Product Range
Standard
NEMA
Phase
Three Phase
Material of Frame
Stainless Steel
Frame Size
56C
IP Degree
IP56
Insulation Class
F
Enclosure
TEFC
Certification
CSA
Series Name
WS / WSP
Frequency
60Hz
Speed
3600 / 1800 rpm
Voltage
208-230/460 Volt, 60Hz
Poles
2 / 4 poles
Power Range
1/3 - 2hp
Efficiency
EPAct / Premium
Standard Features
- No cooling fins, complete smooth surface
- No paint to chip or flake and no surface that will rust
- Rating plate is engraved on the outer Non Drive End cover to reduce areas where bacteria can lurk
- The ss grade shaft mitigates unwanted magnetic flux
- “INVERTER DUTY OPERATION” – 4:1 Constant Torque (CT) / 10:1 Variable Torque (VT)
- Hygienic Cable Gland Certified by European Hygienic Engineering and Design Group
- Completely Smooth Surfaces Guarantee the Highest Needs on Ultra-hygienic Clean Lines
- Thanks to the low losses electromagnetic design and excellent process, the surface temperature of motor is low enough, nobody will be scalded by the hot motor
- Brake, encoder, PTO Thermal Protector is Available
