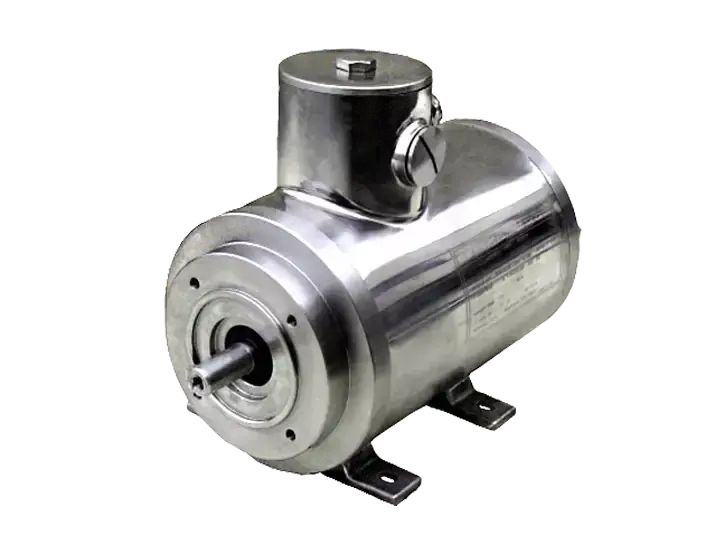

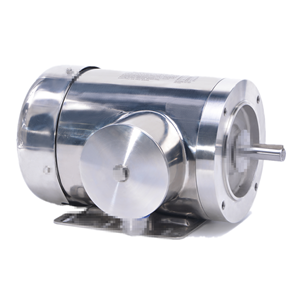

IP69K MOTORS - STAINLESS STEEL- TEFC
IP69K MOTORS - STAINLESS STEEL- TEFC
Stainless steel Motors for food processing, pharmaceutical and other applications requiring extreme cleanliness and frequent washdowns
When food, beverage or pharmaceutical production plants are washed down, the motors – along with other parts – are often subjected to high pressure water jets (sometimes at high temperatures) or even more aggressive cleaning agents.
The motor is TEFC(totally enclosed fan cooled).
Product Range
Standard
IEC / NEMA
Phase
Three Phase
Insulation Class
F
Material of Frame
AISI 304, 316
IP Degree
IP69K
Enclosure
TENV
Certification
CE, CSA
Efficiency
IE3/IE4
Voltage / Frequency
230/400V, 50HZ
277/480V, 60HZ
208-230/460V, 60HZ
575V, 60HZ
Frame Size
56-100(IEC) 56C(NEMA)
Speed
3000/1500/1000/750 rpm (50HZ) 3600 / 1800/1200/900rpm (60HZ)
Power Range
0.06-2.2kW 0.08-3hp
Standard Features
- Wide terminal box – easy installation
- Leading wires are potted by hygienic epoxy, which can prevent water from getting into the motor
- Condensation could be easily drained by removing the drain caps at both Drive End and Non Drive End sides, you even don’t need to remove the fan cowl
- Nameplate Laser Printed on the Back Cover
- Terminal box at NDE side, easy Connection, with Waterproof Butt Connector
Similar Products
IP69K Motors
IP69K motors are designed for high-pressure and high-temperature water exposure, offering superior protection against dust, dirt, and moisture. These motors are ideal for harsh environments where equipment needs to withstand cleaning with pressurized water. They are commonly used in industries such as food processing, pharmaceuticals, and automotive.
IP69K Motors
IP69K motors with stainless steel construction and TENV (Totally Enclosed Non-Ventilated) design offer robust protection against extreme conditions. The stainless steel casing ensures resistance to corrosion, making them ideal for wash-down applications. The TENV design prevents the entry of dust and moisture, providing reliable performance in harsh environments.
IP56 Motors
IP56 motors are designed to offer protection against dust and powerful water jets. With an IP56 rating, these motors are sealed to prevent dust infiltration and can withstand water exposure from any direction. They are commonly used in outdoor or industrial applications where moderate protection from environmental elements is required.
