THREE PHASE MOTORS
THREE PHASE MOTORS
Perdurus single phase motors are general purpose motors and designed according to NEMA MG.G
Designed for “general purpose” use means that these motors can be used in many applications.
The motors can be customized according to your requirement
Product Range
Series Name
NS/NSP
Standard
NEMA
Phase
Three Phase
Efficiency
EPAct / Premium (NEMA)
Power Range
1/3hp - 20hp
Speed
3600 / 1800rpm
IP Degree
IP55, IP54, IP43
Insulation Class
F
Poles
2 / 4 poles
Frame Size
56-256TC
Material of Frame
Rolled Steel
Certification
CE , CSA
Standard Features
- Rigid Base (Welded on), or C-Face with Removable Feet or Round Body (Footless) are Optional
- T Flange and Customized Shaft End is Available
- Steel Frame and Junction Box
- Aluminum or Cast Iron End Bracket for Alternative
- “INVERTER DUTY OPERATION” – 4:1 Constant Torque (CT) / 10:1 Variable Torque (VT)
- 1.15 Service Factor (Suitable for 50 Hz with 1.0 SF)
- Insulation Class F, Temperature Rise Class B
- Manual or Automatic Overload Thermal Protector is Available
Similar Products
THREE PHASE MOTORS
Predurus NEMA standard series motors are designed in accordance with NEMA MG.1:2016.The 3 phase motors are used in a wide range of applications, the motors are reliable, durable, high efficient, flexible and safe, your overall operating costs and downtime can be minimized by using Perdurus motors.
OEM/ODM motors are available to meet every demand of different applications
NEMA THREE PHASE MOTORS TENV
Perdurus NEMA standard series motors are designed in accordance with NEMA MG.1:2016.
The motor is TENV (totally enclosed non ventilated).
OEM/ODM motors are available to meet every demand of different applications,
SINGLE PHASE MOTORS

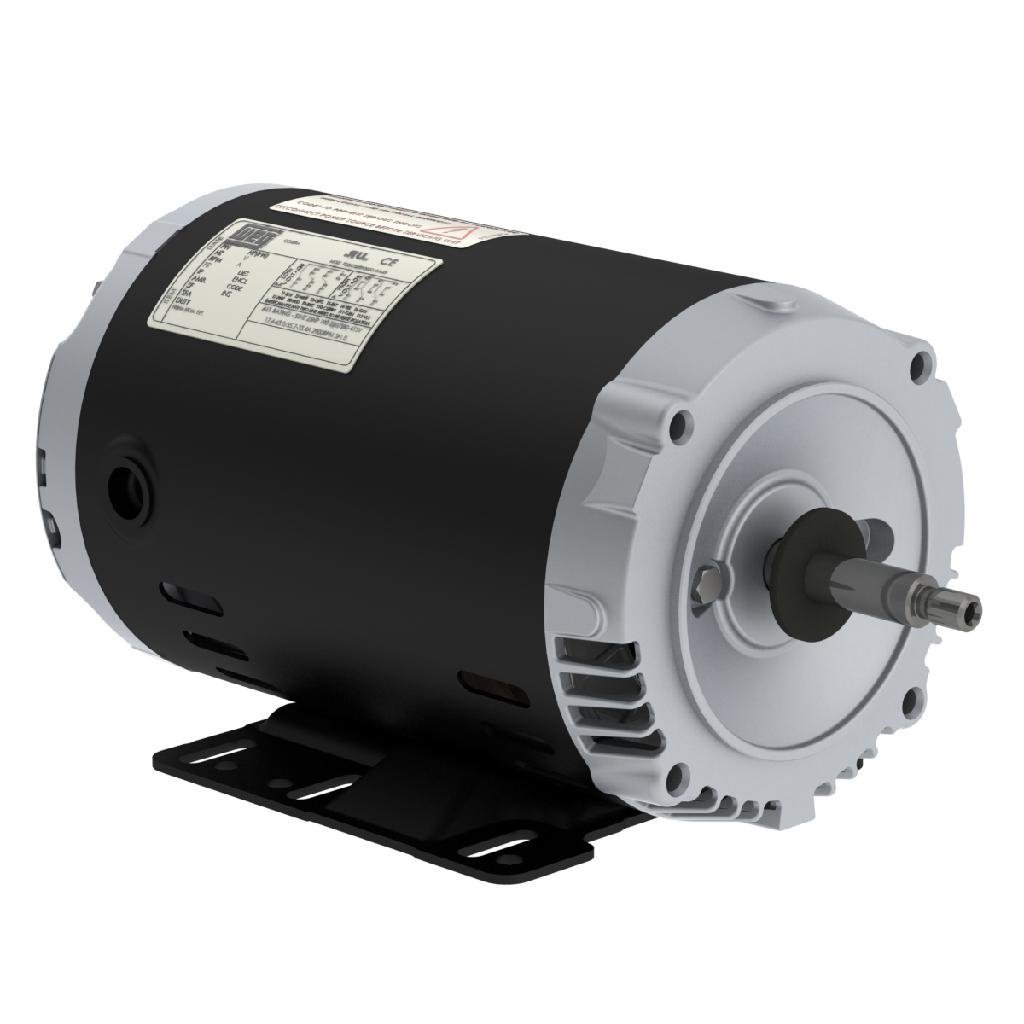

JET PUMP MOTORS
Perdurus JET pump motors are designed for industrial and commercial pumping applications.
- Totally enclosed Non-drive end shield to have provisions for adding Drip Cover
- Shaft material: AISI 304
- 56J shaft / thread shaft & 3/32″ screwdriver slot in Non-Drive End shaft to allow for tightening of impeller onto threads
FARM DUTY MOTORS
The motors can be customized according to your requirement
