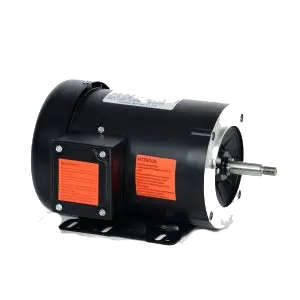

JET PUMP MOTORS
JET PUMP MOTORS
Perdurus JET pump motors are designed for industrial and commercial pumping applications.
- Totally enclosed Non-drive end shield to have provisions for adding Drip Cover
- Shaft material: AISI 304
- 56J shaft / thread shaft & 3/32″ screwdriver slot in Non-Drive End shaft to allow for tightening of impeller onto threads
Product Range
Standard
NEMA
Phase
Three Phase / Single Phase
Material of Frame
Rolled Steel
Temperature Rise
B
Insulation Class
F
Certification
CE, CSA
Frame Size
56C / 56J
Base
Rigid Base (Welded on)
Removable Feet
Round Body (Footless)
Material of Shaft
304
56C Shaft
Keyed Shaft per NEMA MG-1 2016 Figure 18-16
56J Shaft
Threaded Shaft Includes 3/32" screwdriver slot in Non-Drive End shaft to allow for tightening of impeller onto threads
Three Phase Motors - TEFC
Brief Introduction
TEFC = Totally Enclosed Fan-Cooled type
Series Name
NSPJ
Voltage
208-230/460V / 220/380V
Efficiency
EPAct / Premium
Speed
3600 / 3000 rpm
Poles
2 poles
Power Range
1/3-3hp
Frequency
50/60Hz
Overheat Protection
No
IP Degree
IP54, IP43
Single Motors - TEFC
Brief Introduction
TEFC = Totally Enclosed Fan-Cooled type.
Capacitor start motors from 1/3-1hp, Capacitor start capacitor run motors from 1 1/2 – 2hp
Series Name
NSPJ
Capacitor Type
Starting Capacitor, Running Capacitor
Voltage
60HZ: 115/208-230V @ 1/3 - 2HP & 230V @ 3HP 50HZ: 110/220V @ 1/3 - 2HP & 220V @ 3HP
Speed
3600 rpm / 3000 rpm
Poles
2 poles
Power Range
1/3-3hp
Frequency
50/60Hz
Overheat Protection
No
IP Degree
IP54, IP43
Three Phase Motors ODP
Brief Introduction
ODP = Open Drip Proof
Series Name
NSPJ ODP
Voltage
60HZ: 208-230/460V
50HZ: 220/380V
Efficiency
EPAct / Premium
Speed
3600 / 3000 rpm
Poles
2 poles
Power Range
1/3-3hp
Frequency
50/60Hz
Overheat Protection
No
IP Degree
IP21
Standard Features
- Rigid Base (Welded on), or C-Face with Removable Feet or Round Body (Footless) are Optional
- T Flange and Customized Shaft End is Available
- Steel Frame and Junction Box
- Aluminum or Cast Iron End Bracket for Alternative
- “INVERTER DUTY OPERATION” – 4:1 Constant Torque (CT) / 10:1 Variable Torque (VT)
- 1.15 Service Factor (Suitable for 50 Hz with 1.0 SF)
- Insulation Class F, Temperature Rise Class B
- Manual or Automatic Overload Thermal Protector is Available
