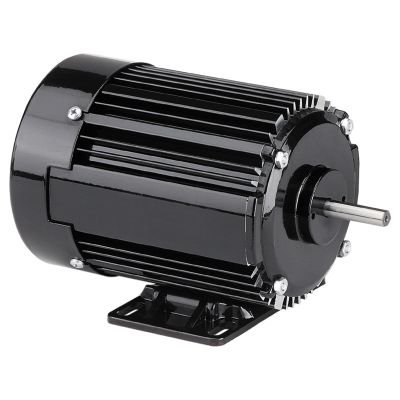

    THREE PHASE MOTORS

    THREE PHASE MOTORS

    Perdurus NEMA standard series motors are designed in accordance with NEMA MG.

    The motor is TENV (totally enclosed non ventilated).

    OEM/ODM motors are available to meet every demand of different applications.

    Product Range

    Series Name

    NS/NSP

    Standard

    NEMA

    Phase

    Three Phase

    Efficiency

    EPAct / Premium (NEMA)

    Power Range

    1/3hp - 20hp

    Speed

    3600 / 1800rpm

    IP Degree

    IP55, IP54, IP43

    Insulation Class

    F

    Poles

    2 / 4 poles

    Frame Size

    56-256TC

    Material of Frame

    Rolled Steel

    Certification

    CE , CSA

    Standard Features

    • Rigid Base (Welded on), or C-Face with Removable Feet or Round Body (Footless) are Optional
    • T Flange and Customized Shaft End is Available
    • Steel Frame and Junction Box
    • Aluminum or Cast Iron End Bracket for Alternative
    • “INVERTER DUTY OPERATION” – 4:1 Constant Torque (CT) / 10:1 Variable Torque (VT)
    • 1.15 Service Factor (Suitable for 50 Hz with 1.0 SF)
    • Insulation Class F, Temperature Rise Class B
    • Manual or Automatic Overload Thermal Protector is Available

    Similar Products

    THREE PHASE MOTORS

    Predurus NEMA standard series motors are designed in accordance with NEMA MG.1:2016.The 3 phase motors are used in a wide range of applications, the motors are reliable, durable, high efficient, flexible and safe, your overall operating costs and downtime can be minimized by using Perdurus motors.

    OEM/ODM motors are available to meet every demand of different applications

    NEMA THREE PHASE MOTORS TENV

    Perdurus NEMA standard series motors are designed in accordance with NEMA MG.1:2016.

    The motor is TENV (totally enclosed non ventilated).

    OEM/ODM motors are available to meet every demand of different applications,

    SINGLE PHASE MOTORS

    Perdurus single phase motors are general purpose motors and designed according to NEMA MG.G:2016.
    Designed for “general purpose” use means that these motors can be used in many applications.
    The motors can be customized according to your requirement

    JET PUMP MOTORS

    Perdurus JET pump motors are designed for industrial and commercial pumping applications.

    • Totally enclosed Non-drive end shield to have provisions for adding Drip Cover
    • Shaft material: AISI 304
    • 56J shaft /  thread shaft & 3/32″ screwdriver slot in Non-Drive End shaft to allow for tightening of impeller onto threads

    FARM DUTY MOTORS

    Perdurus farm duty motors are designed with high torque, robust structure that suitable for agricultural and industrial application, which requires continualy starts and stops, frequent use, long-time running.

    The motors can be customized according to your requirement

    BOAT LIFT MOTORS

    The motor is designed for boat lift that requires S2-15min duty running.
